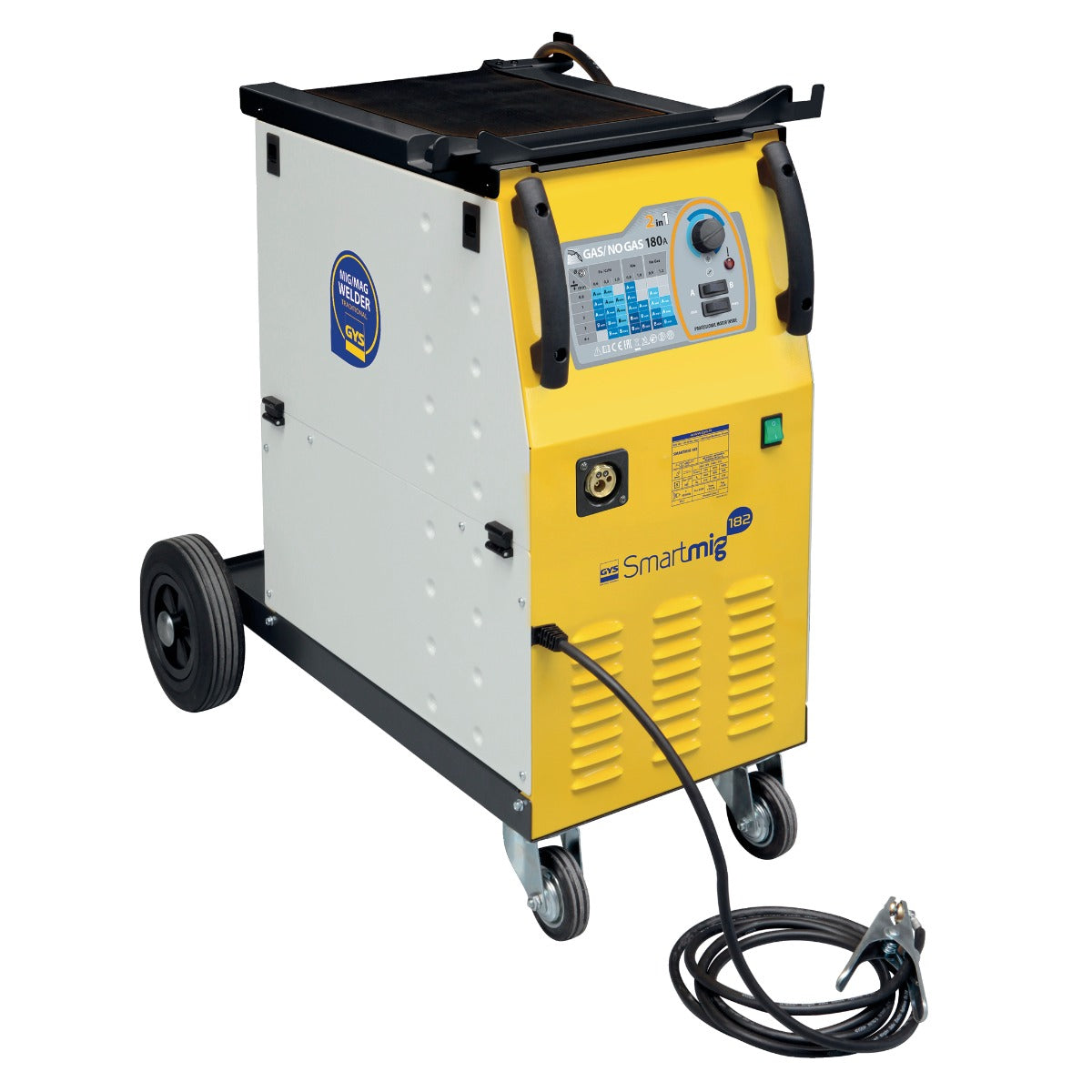

The GYS 033184 SmartMig 182 is a single-phase full size 180A MIG/MAG welding unit. Ideal for general workshop use. Perfectly suited for non-intensive work for assembly, repair maintain steel, stainless steel or aluminium section or sheet. Easy to use intuitive SMART control panel.
MIG Processes 2-in-1:
- Gas: 0.6 - 1mm wire.
- No Gas: For outdoor welding with a 0.9 - 1.2mm wire. Kit no gas (041240).
Professional Accessories:
- Supplied with 150A torch (length 3m). Euro torch connection for easy wire and liner change.
- Powerful 40W motor for a smooth and constant wire speed.
- For use with † 200mm (5kg) and 300 mm (15kg) wire reel.
Energy Efficient and Convenient:
- Low current consumption, pluggable on a single 230V - 16A socket, (13A in UK).
- It can be used on a 6KVA generator.
Smart Control Panel:
- Ideal settings are indicated, just select the type and diameter of wire used, then the thickness of the metal.
- The SMART control panel makes it easy to set the voltage (4 positions) and the wire speed.
Specification:
- 50/60hz: 230V 1~.
- AM: 16A.
- Min-Max: 35 - 180A.
- GAS: 0.6 - 1.0.
- NO GAS: 0.9 - 1.2.
- Wire: 200mm, 300mm.
- EN60974-1 (40°C) IA (60%): 80A.
- EN60974-1 X% (I2 max): 140A 15%.
- U0: 28V - 45V.
- Dimensions: 39x80x70 cm.
- Weight: 46 kg.
- Protected & compatible POWER GENERATOR (+/- 15%): 6Kva.
