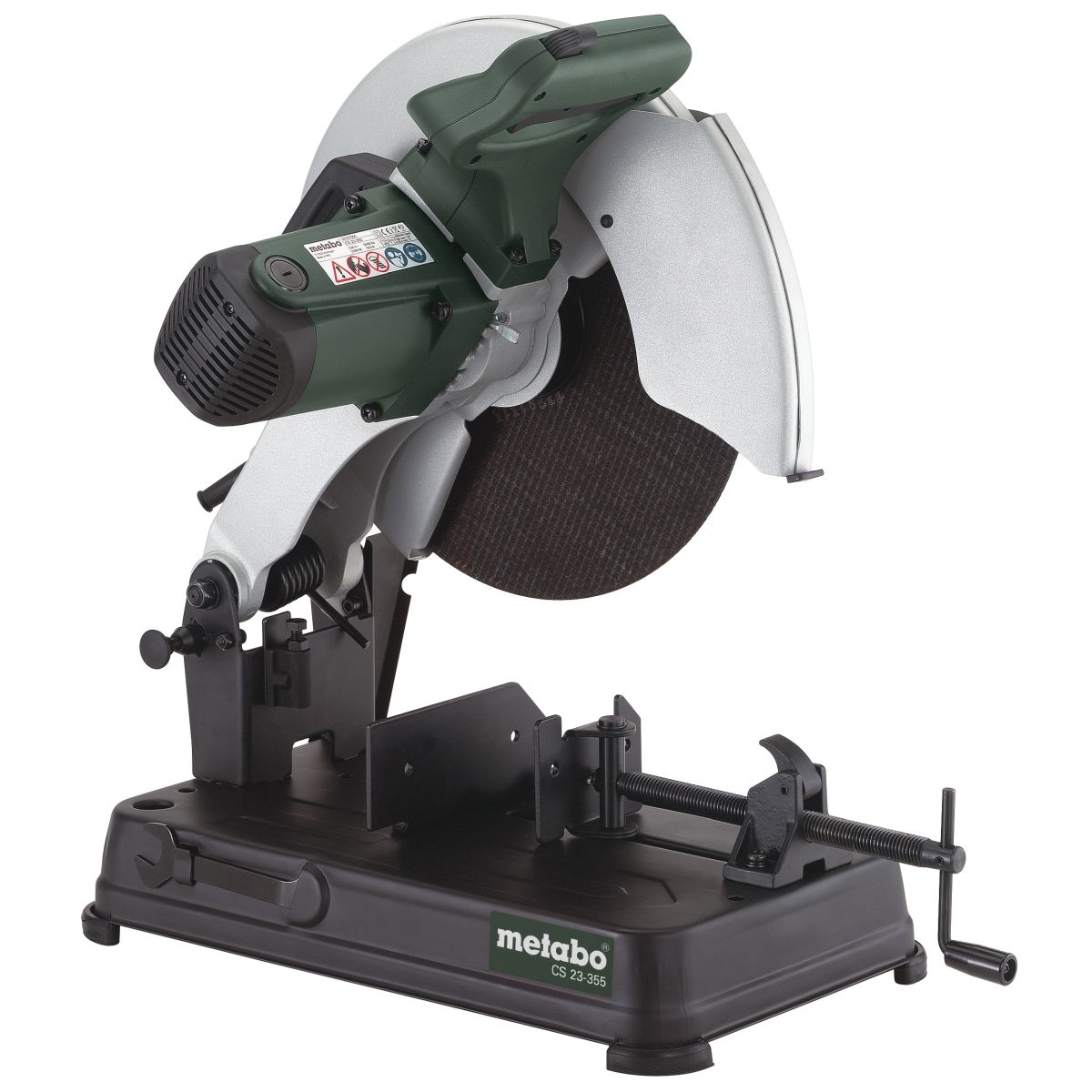

The Metabo CS23-355 Metal Chop Saw provides powerful and fast cutting for profiles, pipes and rods made of steel, cast iron, aluminium and other non-ferrous metals.
Key Features of the Metabo CS23-355
- For single phase alternating current.
- Motor and gear with ball bearing for high loads.
- Spindle lock for easy disc change.
- Quick clamping device with variable mitre conversion from -15° up to 45°.
- Easy to transport due to built-in handle and locking device.
- High safety thanks to swivelling cutting guard.
- Storage for double-ended wrench at the machine table.
- Safe working thanks to adjustable spark guide plate.
- Adjustable cutting depth limiter.
Technical Specifications of the Metabo CS23-355
Grinding wheels (x bore): 355 x 25.4 mm.
Torque: 18 Nm.
No-load speed: 4100 rpm.
Rated input power: 1600 W.
Cutting capacity steel bars: 65 mm.
Cutting capacity pipes: 125 mm.
Cutting capacity steel sections: 115 x 130 mm.
Maximum opening of vice jaws: 238 mm.
Dimensions of the base plate: 468 x 282 mm.
Transport height: 400 mm.
Weight: 16.9 kg.
Cable length: 2.7 m.
Sound pressure level: 91 dB(A).
Sound power level (LwA): 104 dB(A).
Uncertainty of measurement K: 3 dB(A).
Included with the Metabo CS23-355
- Open-ended ring spanner.
- Inner support flange.
- Flange nut.
