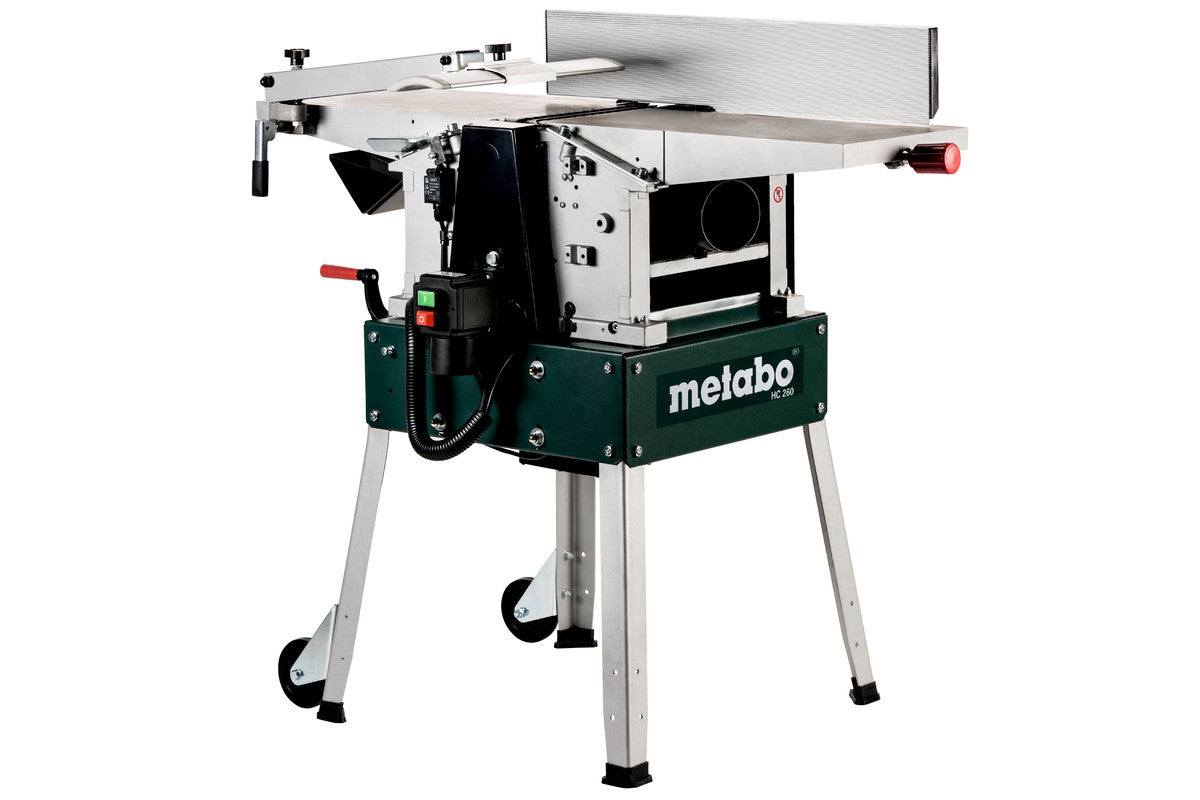

The Metabo 0114026038 240v Planer Thicknesser is made from cast iron and the tables are made of cast aluminium. It comes supplied with a legstand.
- Simple conversion from surface planer to bench thicknesser without tools.
- Stable gear for uniform work piece feed.
- Thickness table made of solid, non-abrasive grey cast iron.
- Convenient height adjustment with crank handle.
- Planer blades with double blade for longer service life.
- Jointing fence, swivelling 90°-45°.
- Powerful universal motor for powerful lugging drive and even planing result.
- Quiet induction motor, maintenance-free and robust.
- Restart protection: prevents unintentional start-up after power supply interruption.
Specification:
- Dimensions: 1110 x 620 x 960 mm / 3.7 x 2.1 x 3.2 ft.
- Dressing plates L x W: 1040 x 260 mm / 3.4 x 0.9 ".
- Chip removal, planning: 0 - 3 mm // 0 - 1/8 ".
- Chip removal bench thicknesser: 0 - 3 mm // 0 - 1/8 ".
- Material dressing plates: Cast aluminium.
- Material thickness table: Grey cast iron.
- Thickness table L x W: 400 x 260 mm / 15 3/4 x 10 1/4 ".
- Passage height/width: 160 / 260 mm // 6 5/16 / 10 1/4 ".
- Feed rate: 5 m/min / 16 ft/min.
- Diameter of blade shaft: 63 mm / 2 1/2 ".
- Number of blades: 2.
- Revolutions of blade shaft: 6500 rpm.
- Mains voltage: 220 - 240 V.
- Rated input power: 2200 W.
- Output power: 1600 W.
- Weight: 71 kg / 157 lbs.
- Uncertainty of measurement K: 3 dB(A).
Includes:
- Integrated disposable reversible planer blades.
- Push stick.
- Extraction Nozzles.
- Transport wheels.
- Short, swivelling jointing fence.
- Chip ejection hood.
Buy Metabo HC 260 C 240v, 2.2 KW Planner Thicknesser online now from DW Toolshop, one of the UK and Irelands largest tool shops.
