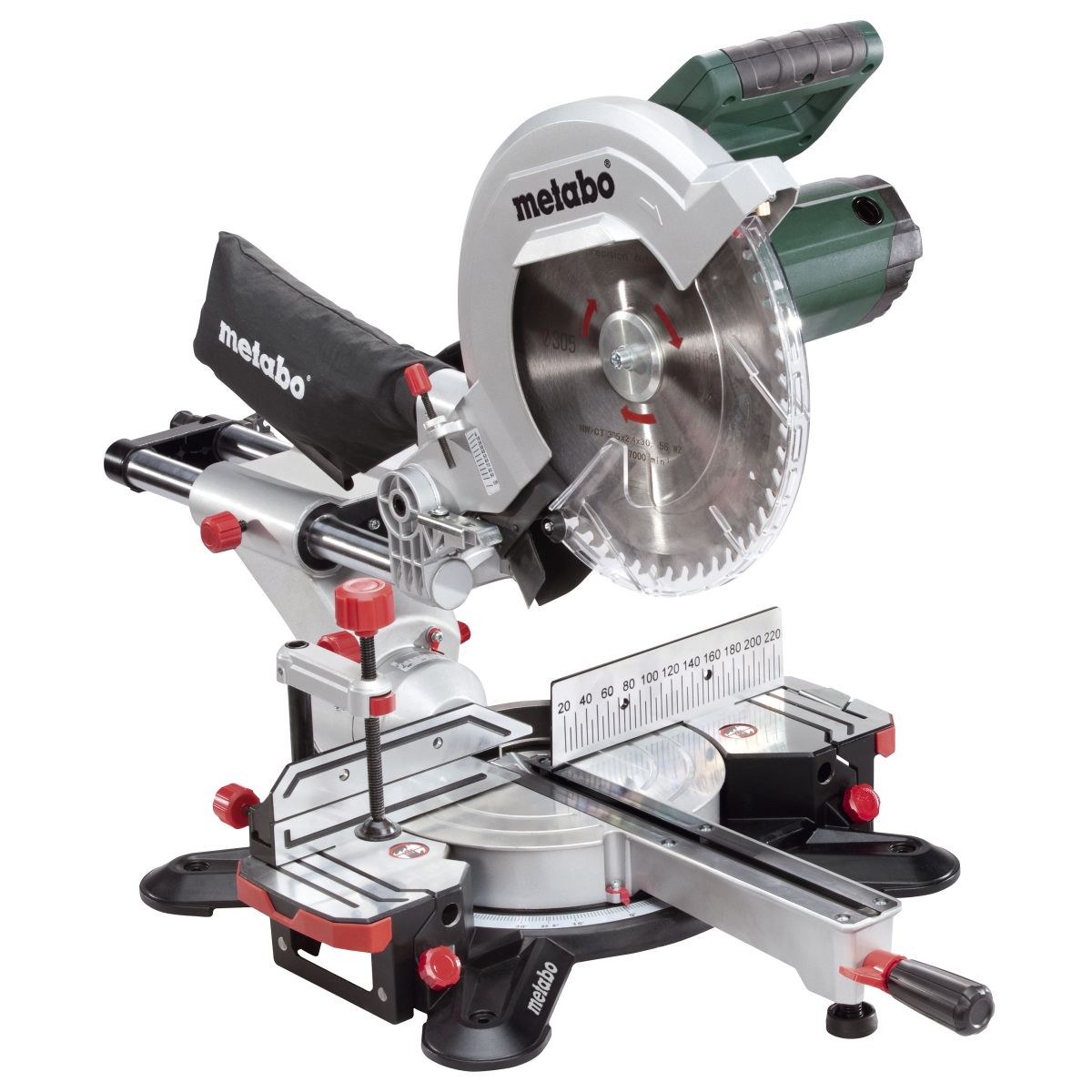

The Metabo 619305390 Mitre Saw provides enormous cutting performance due to extremely powerful universal motor and large saw blade. It is compact light weight and suitable for one-handed transport.
- Sliding function for wide work pieces.
- Robust die-cast aluminium design for the highest demands.
- Easy transport thanks to ergonomically designed handles and saw head lock.
- Effective dust extraction via integrated dust scoop.
- Starting current limitation prevents the actuation of the lock on start-up.
- Fast and precise setting of common angles using stop points.
- Laser for exact display of the cutting line (mains powered; no batteries required).
- Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath.
- Bright LED work light for illumination of the cutting line (mains powered; no batteries required).
- Sliding high rear fence profiles for safe sawing.
- Material clamp for secure fixing of the work piece from the top or front.
- Depth guide for easy creation of grooves.
- Saw head can be inclined to the left, with additional angle range for undercuts.
- All scales and operating elements are visible from the working position and can be operated intuitively.
- Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required.
Specification:
- Dimensions: 850 x 515 x 615 mm / 33 15/32 x 20 9/32 x 24 7/32 ".
- Support surface: 340 x 775 mm.
- Maximum cutting width 90°/45°: 305 / 205 mm // 12 / 8 1/16 ".
- Maximum cutting depth at 90°/45°: 105 / 67 mm // 4 1/8 / 2 5/8 ".
- Cutting capacity 90°/90°: 305 x 105 mm / 12 x 4 1/8 ".
- Cutting capacity 45°/45°: 205 x 67 mm / 8 1/16 x 2 5/8 ".
- Turntable setting left/right47 / 47°.
- Saw blade tilt left/right: 47 / 2°.
- Saw blade: 305 x 30 mm / 12 x 1.181 ".
- Rated input power S1 100%: 1600 W.
- Rated input power S6 20%: 2000 W.
- No-load speed: 3700 rpm.
- Revolutions at rated load: 2600 rpm.
- Cutting speed: 60 m/s / 197 ft/s.
- Weight: 19.6 kg / 43.2 lbs kg.
- Cable length: 2 m / 7 ft.
- Sound pressure level: 97 dB(A).
- Sound power level (LwA): 104 dB(A).
- Uncertainty of measurement K: 3 dB(A).
Includes:
- Carbide saw blade (56 teeth).
- Material clamp.
- Tool for saw blade change.
- Cable winder.
- Chip Collection Bag.
- 2 Table length extensions.
- Length Guide.
Buy Metabo KGS 305 M 12" Mitre Saw 110V online now from DW Toolshop, one of the UK and Irelands largest tool shops.
