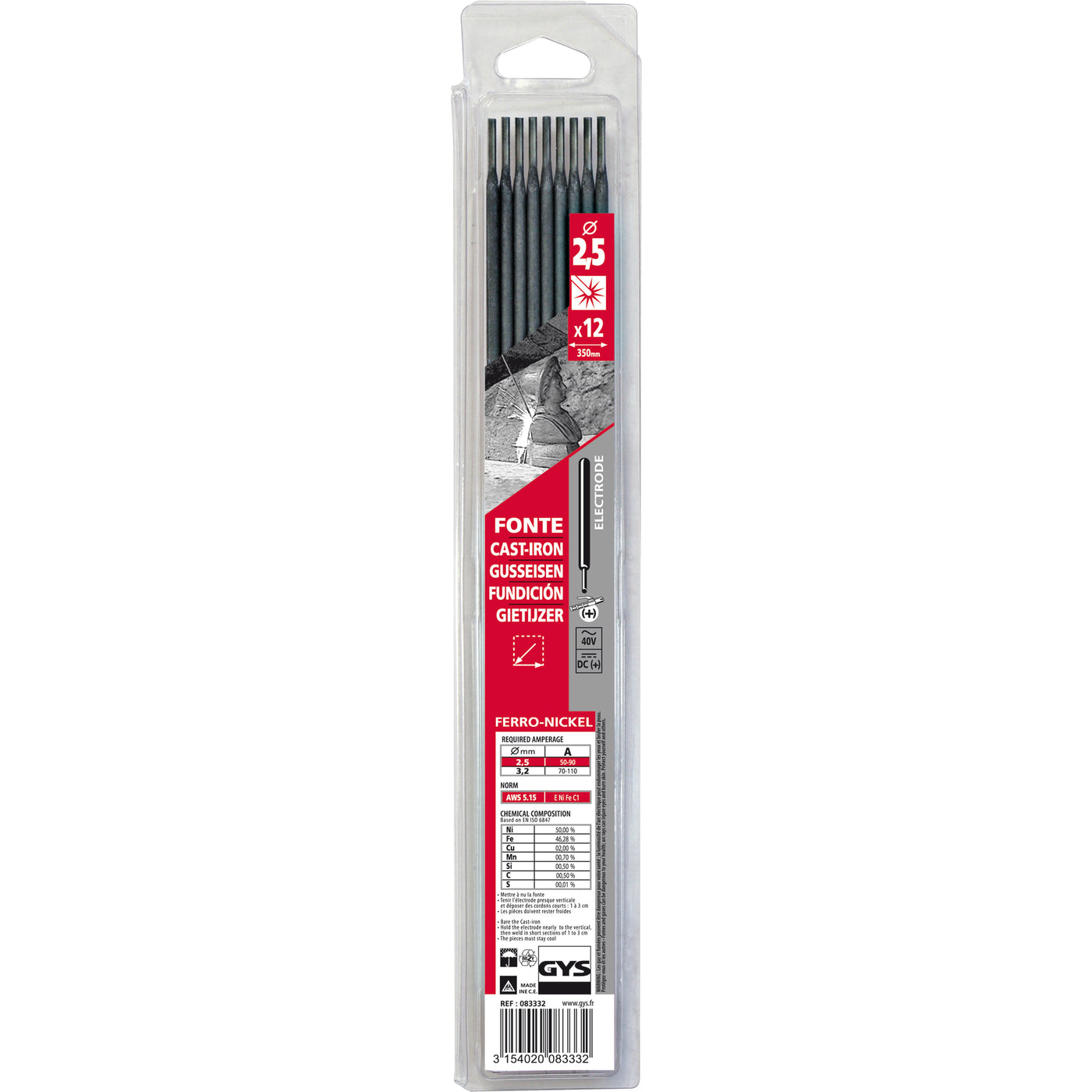

GYS 083332 12 Cast Iron Electrodes - 2.5 (Blister)

The GYS 083332 graphite-basic coated electrode with a high nickel concentration percentage, designed for cast iron repairs. It has excellent mechanical properties and is highly resistant to cracks. It is recommended for cast iron/steel & dissimilar assemblies.

Classification:

• EN ISO 1071: EC NiFe-Cl.
• AWS A 5.15: E Ni Fe Cl 3.
• DIN 8573: E NiFe 1 BG 13.

Applications:

• Welding and reinforcing cast iron, cast iron, modular cast iron and cast-iron steel assemblies.
• Crankcase.
• Cylinder head.
• Engine block.
• Pump casing.
• Gear wheel.

Benefits:

• Homogeneous ferronickel alloy, very resistant to cracks.
• Excellent performance on old cast iron.
• High mechanical specifications.

Position and polarity:

• Ignition from 40V - Direct current.
• Electrode polarity (+).

Specification:

Chemical Properties:

• C%: 1.00.
• Mn%: < 1.00.
• Si %: < 2.00.
• Ni%: 56.00.
• Fe%: base.

Mechanical Properties:

• Re: 390.
• Rm: 550.
