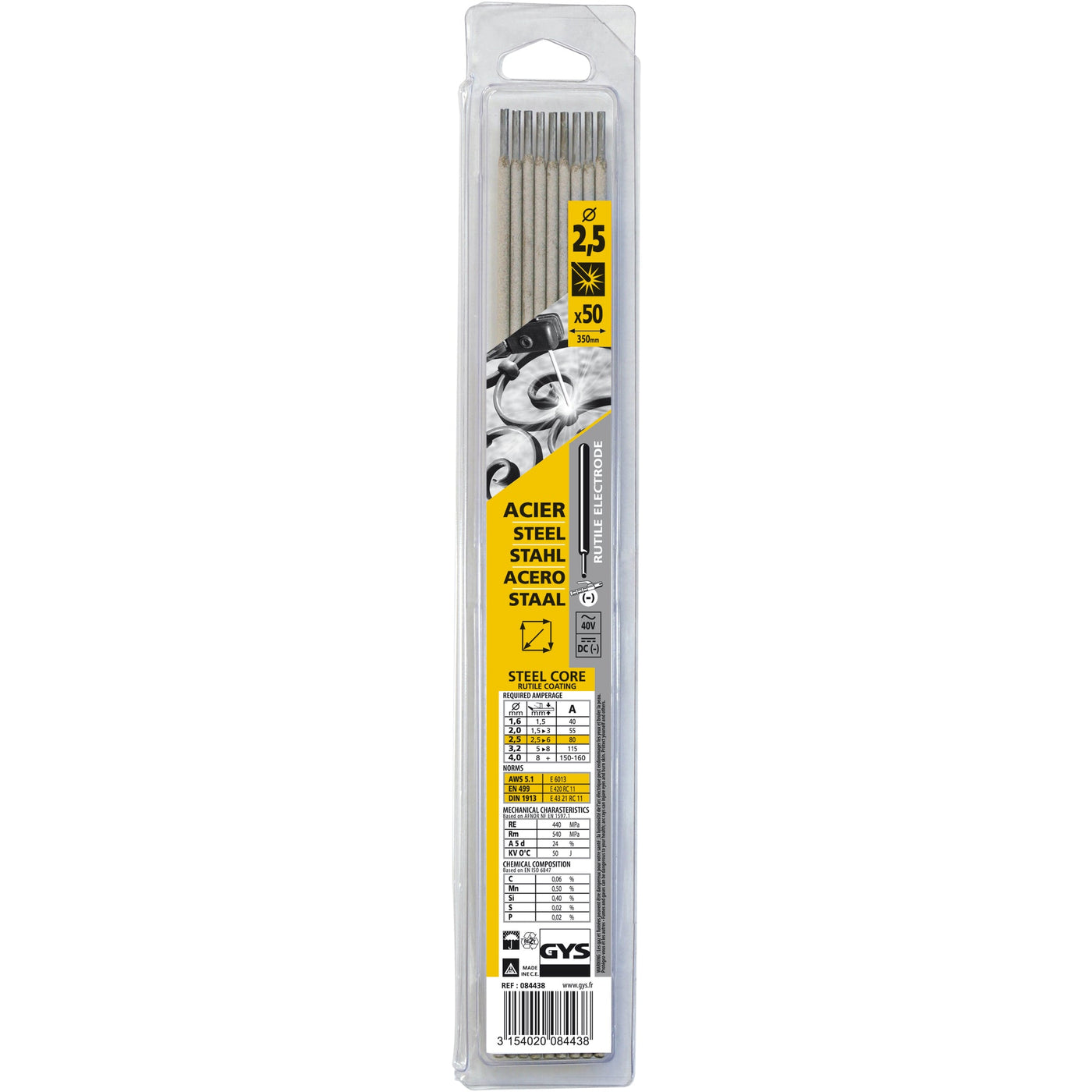

GYS 084438 50 Rutile Electrodes - Steel - 2.5 (Blister)

The GYS 084438 50 universal rutile electrodes designed for welding in any position, including vertical down welding. It is easy to ignite and offers an excellent weldbead aesthetics. It is recommended for general construction of non-alloy and low alloy steel.

Classification:

• EN ISO 2560-A: E 42 0 RC 1 1.
• AWS A 5.1: E6013.

Applications:

• Metal constructions.
• Tanks.
• Pipework.
• Metalwork.
• Crafts.

Benefits:

• Easy ignition and re-ignition.
• Good weldability in all positions.
• Flat weld bead (slightly rounded) and easy cleanup.
• Excellent weldbead aesthetics.

Position:

• Ignition from 40V - Direct current.
• Electrode polarity (-).

Specification:

Chemical Properties:

• C%: 0.06.
• Mn%: 0.50.
• Si %: 0.40.
• P%: 0.025.
• S%: 0.025.

Mechanical Properties:

• Re: 440 MPa.
• Rm: 540 MPa.
• A 5 d: 24%.
• KV 0°C: 50 J.
