Product Overview

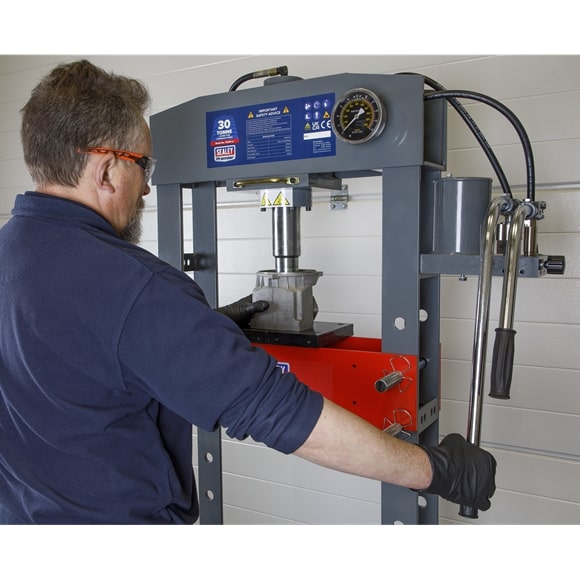

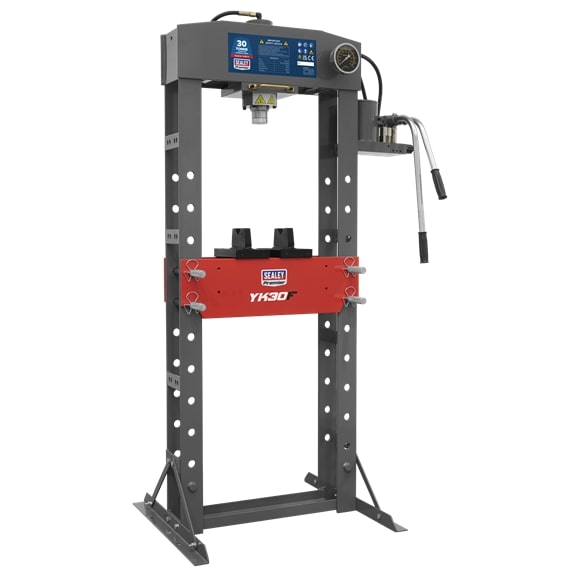

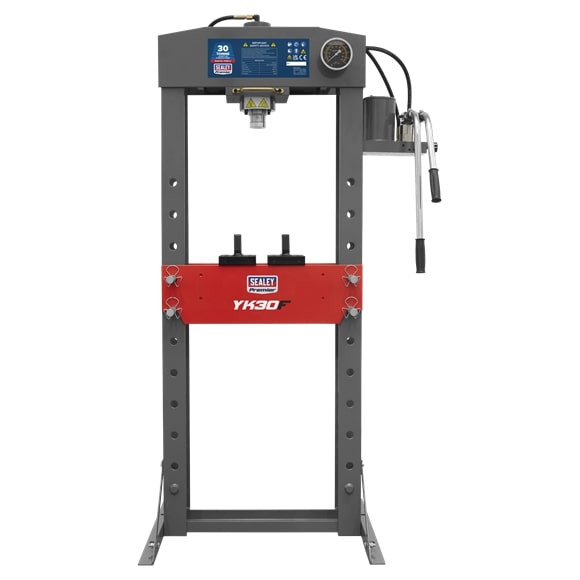

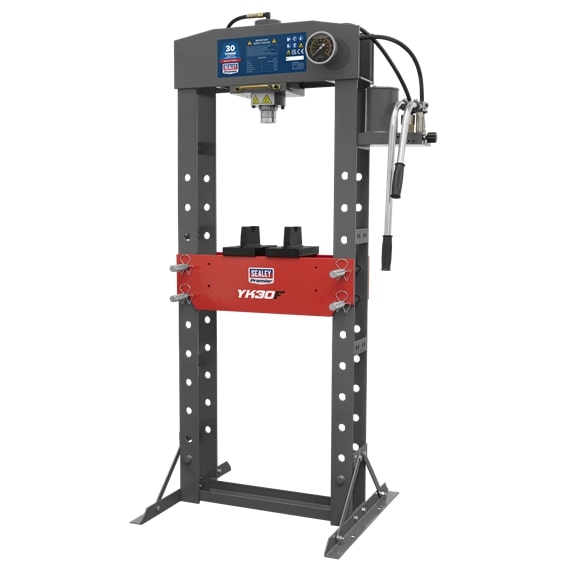

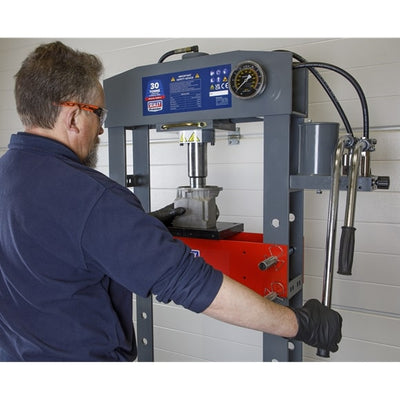

The Sealey YK30F 30 Tonne Floor Type Hydraulic Press features a heavy-duty steel frame construction with 2-speed hydraulic pump unit.
Key Features of the Sealey YK30F 30 Tonne Floor Type Hydraulic Press:

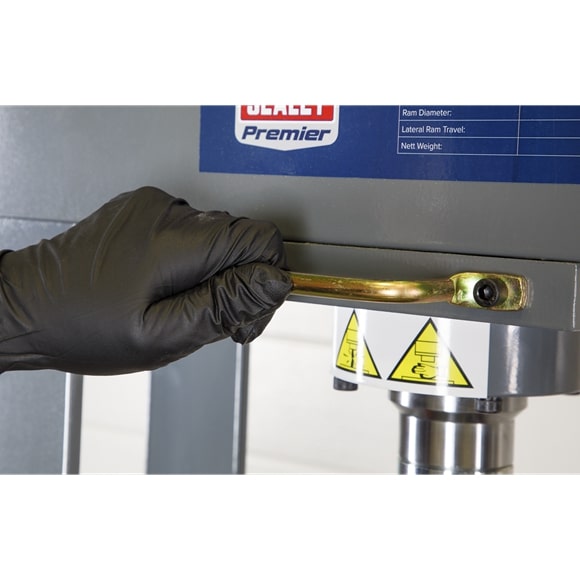

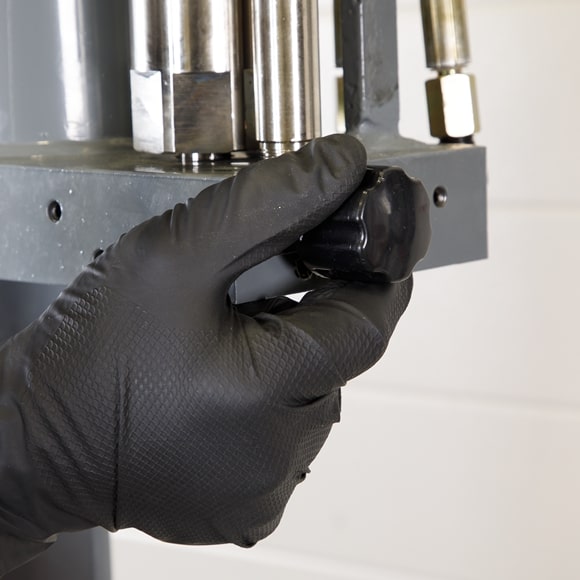

- Sliding hydraulic ram assembly gives 200mm of lateral travel for off-centre pressing applications.

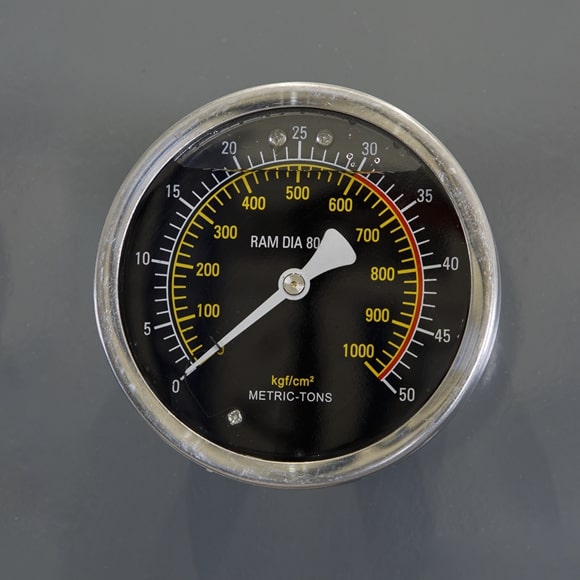

- Frame head fitted with ram pressure gauge.

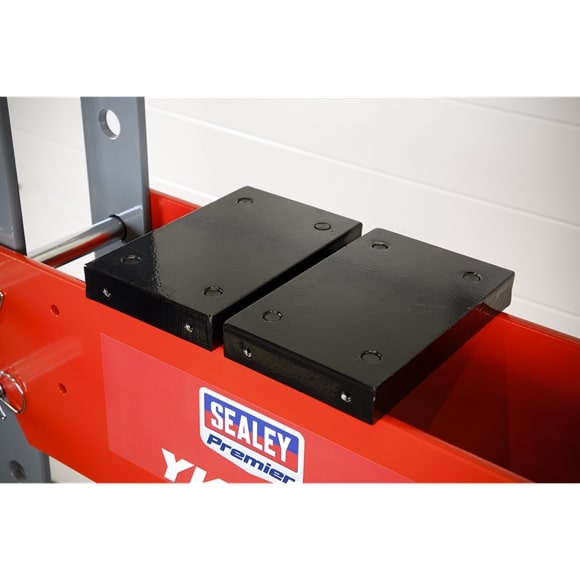

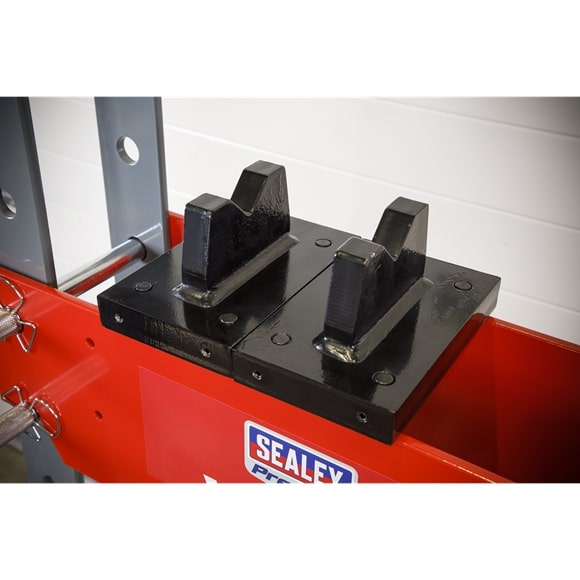

- Supplied with flat pressing plate/V-blocks.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Technical Specifications of the Sealey YK30F 30 Tonne Floor Type Hydraulic Press:
Bench or Floor Mounting: Floor
Capacity: 30 Tonne
Gauge Included: Yes
Lateral Ram Travel: 200mm
Maximum Height - Ram to Table: 1030mm
Minimum Height - Ram to Table: 150mm
Nett Weight: 166kg
Operating Table Width: 535mm
Optional Accessories: YKSG30 - Safety Guard, YKPP8 - Press Pin Set
Overall Height: 1801mm
Ram Diameter: Ø70mm
Ram Stroke: 150mm
Table Aperture: 164mm
Type: Hydraulic
Working Table Depth: 184mm
Working Table Width: 695mm
Buy Sealey YK30F 30 Tonne Floor Type Hydraulic Press online now from DW Toolshop, one of the UK and Ireland’s largest tool shops
Product Specification
Manufacturer: | Sealey |
