Product Overview

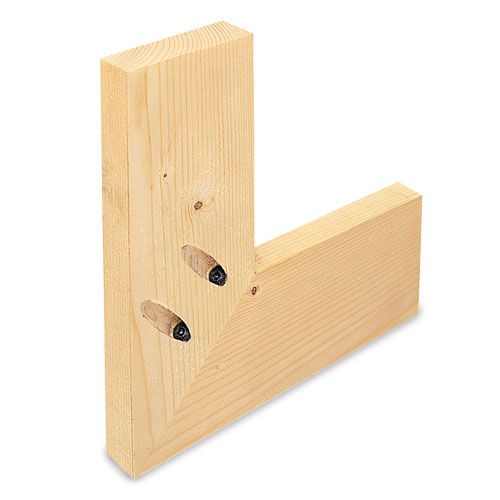

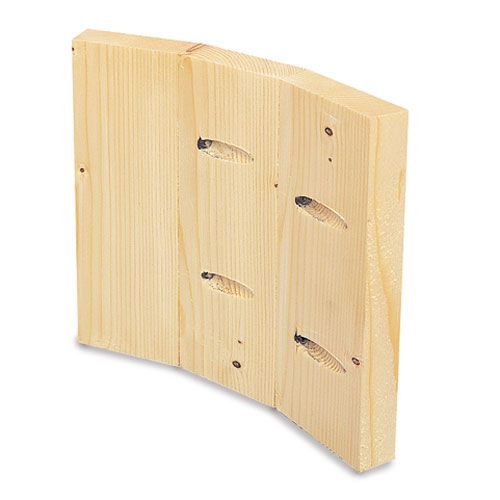

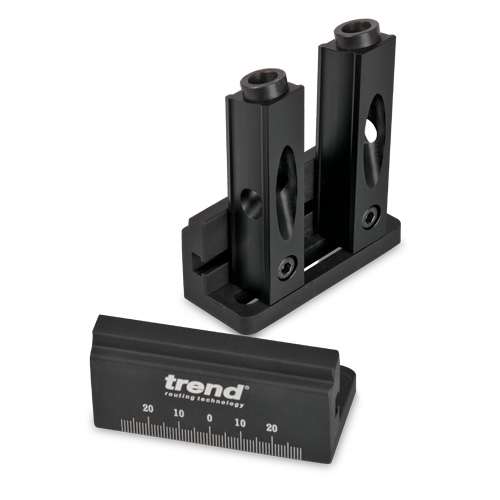

The Trend PH/JIG/M Pocket Hole Jig Mini, for fast and accurate joining of timber and plywood giving strong instant joints.

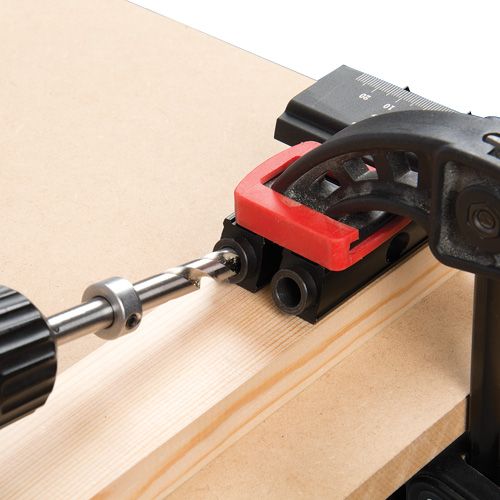

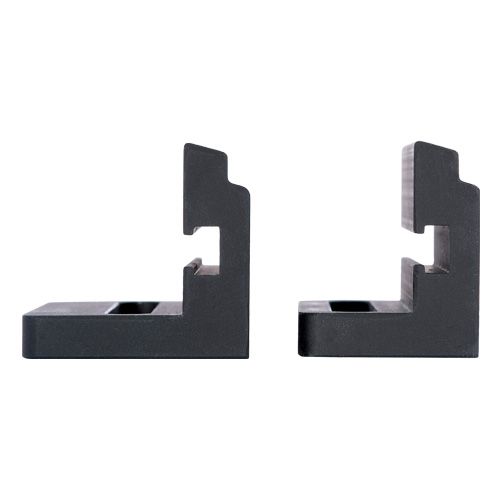

Supplied with two bases short and long. Long base is used on edge of component, short base allows jointing into corners for refurbishment work.
Key Features of the Trend PH/JIG/M Pocket Hole Jig Mini:

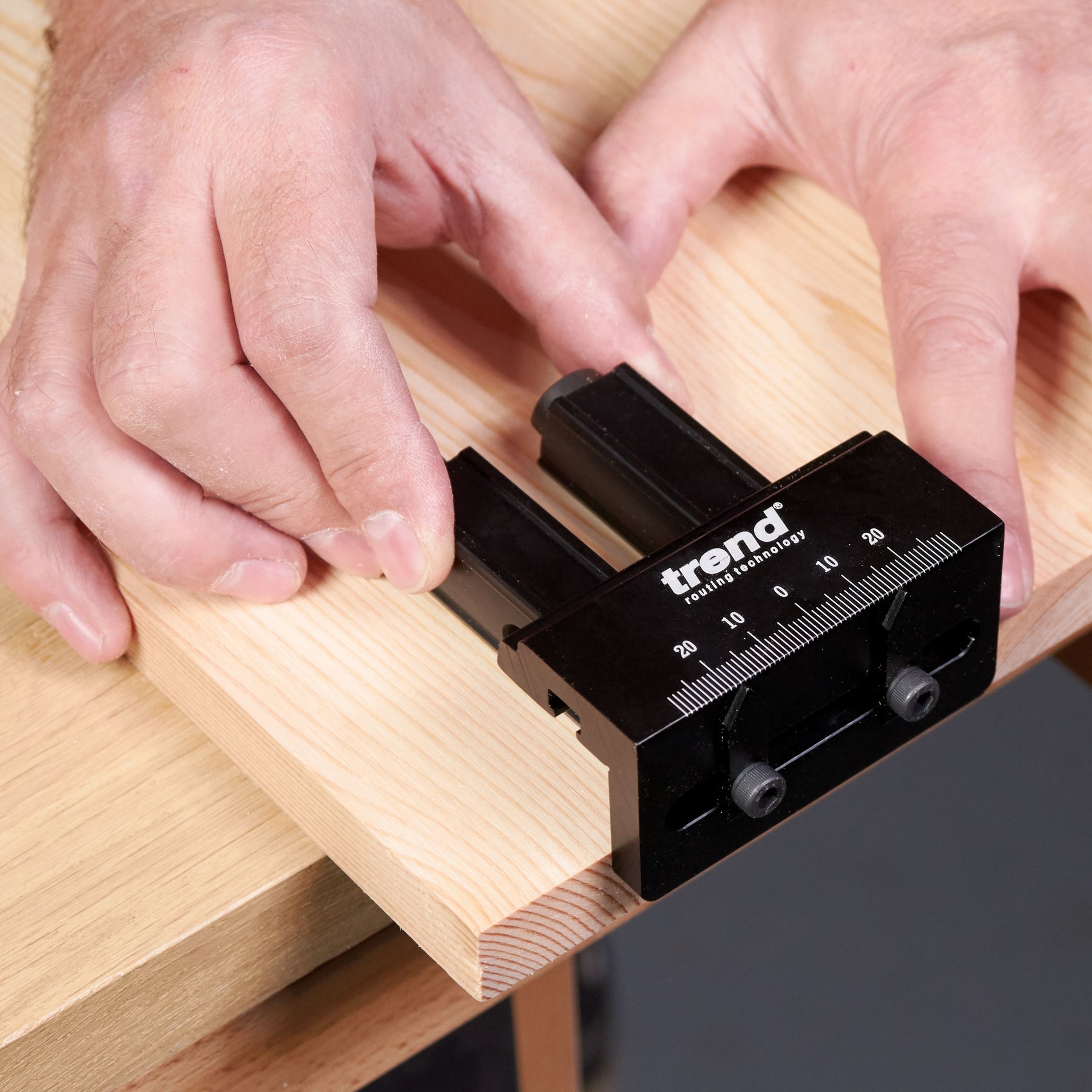

- Compact design perfect for repair work in situ on furniture, cupboards, and cabinets.
- Supplied with twin bases for use on new work and repairs for increased diversity.

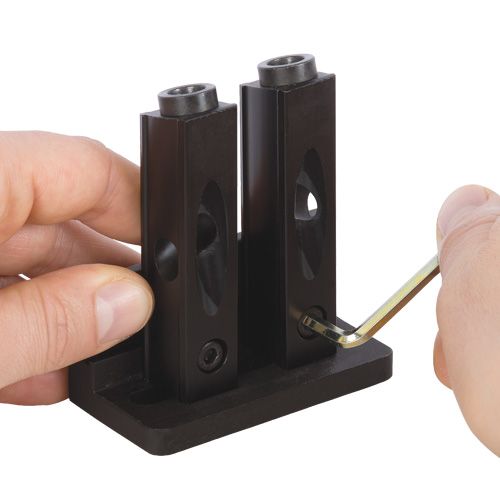

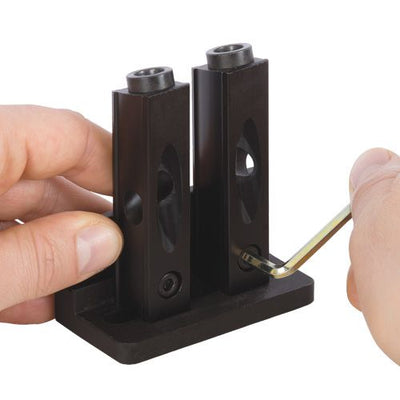

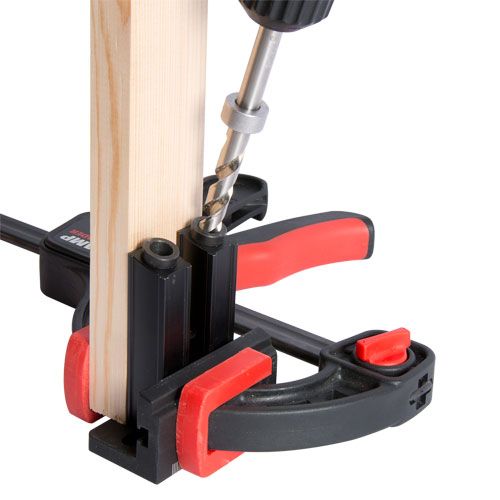

- Fully adjustable from 18mm to 54mm centres for twin holes or stripped down for single pockets; ideal for repairs or joints on thinner components.
- Comes ready to use, complete with drill, driver bit and screws.
- High quality all metal build quality for durability, solid performance and consistency in any project.
Technical Specifications of the Trend PH/JIG/M Pocket Hole Jig Mini:
Material Thickness Min.: 16mm
Material Thickness Max.: 38mm
Material Width Min.: 38mm
Hole Pitch: 18mm-54mm
Drill Diameter: 9.5mm
Square Drive Bit Size: No.2
Screw Sizes: No.7 X 30mm
Included with the Trend PH/JIG/M Pocket Hole Jig Mini:
50 X Dome Head Screws
1x Long Base
1x Short Base

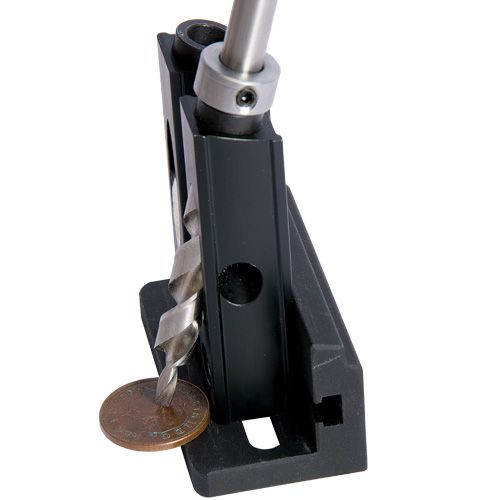

1x HSS Drill Bit with Collar
1x 150Mm Square Drive Bit
1x Hex Key 4mm A/F
1x Hex Key 2.5mm A/F
Buy Trend PH/JIG/M Pocket Hole Jig Mini online now from DW Toolshop, one of the UK and Irelands largest tool shops.
Product Specification
Manufacturer: | Trend |
